轻量云上二进制部署 Kubernetes（上篇）

2024年9月13日

Kubernetes云原生

前阵子趁着腾讯云打折，我顺手入了两台轻量云服务器，想着搭个 Kubernetes 集群玩玩。没想到整个过程比预期顺利多了，一步步撸下来，没有翻车。趁着这几天有空，就把整个搭建流程都整理了一遍

现在，我所有的服务包括前端、后端、还有一些实验项目等，都已经全部迁到了这个自建的 k8s 集群上运行。再配合上自动化的 CI/CD 工作流，代码从提交到上线几乎是无感流转，效率拉满

整体下来，这套小集群不光稳定、省心，还让我对云原生体系的理解更落地了，资源调度、弹性扩容、服务治理，全都能在实战里感受到

考虑到文章的内容比较多，我打算分成上下两篇来写。上篇主要聚焦在以下部分：

准备工作
创建 CA 根证书和秘钥
kubectl 安装和配置
Etcd 集群安装和配置
部署 Master 节点组件
部署 kube-apiserver 组件
部署 kube-controller-manager 组件
部署 kube-scheduler 组件

这是下篇的传送门：轻量云上二进制部署 Kubernetes（下篇）

准备工作

我准备使用上述 2 台机器混合部署 Etcd、Master 节点和 Worker 节点

集群规划

节点名	IP 地址	配置
k8s-01	10.1.12.3	2C4G
k8s-02	10.1.8.16	2C2G

首先，设置下两台机器的主机名，登录机器，执行对应的 hostnamectl 命令

bash

hostnamectl set-hostname k8s-01
hostnamectl set-hostname k8s-02

为了防止 DNS 不支持主机名称解析，还需要在每台机器的 /etc/hosts 文件中添加主机名和 IP 的对应关系：

bash

cat >> /etc/hosts <<EOF
10.1.12.3 k8s-01
10.1.8.16 k8s-02
EOF

退出，重新登录 root 账号，可以看到主机名生效

添加节点信任关系，以下操作只需要在 k8s-01 节点上进行，设置 root 账户可以无密码登录所有节点：

bash

sed -i 's/PubkeyAuthentication no/PubkeyAuthentication yes/g' /etc/ssh/sshd_config
sed -i 's/PasswordAuthentication no/PasswordAuthentication yes/g' /etc/ssh/sshd_config
sed -i 's/^#\s*\(AuthorizedKeysFile\s\+.*\)/\1/' /etc/ssh/sshd_config
systemctl restart sshd

添加完节点信任关系之后，最好手动分别执行 ssh root@k8s-01、ssh root@k8s-02 命令测试下是否可以无密码登录，防止因为 sshd 配置的原因，引起的无密码登录失败

创建 CA 根证书和秘钥

为确保安全，Kubernetes 系统各组件需要使用 x509 证书对通信进行加密和认证：

CA (Certificate Authority) 是自签名的根证书，用来签名后续创建的其它证书；
CA 证书是集群所有节点共享的，只需要创建一次，后续用它签名其它所有证书；
本次使用 CloudFlare 的 PKI 工具集 cfssl 创建所有证书。

下载和分发 kubectl 二进制文件

bash

cd /opt/k8s/work
wget https://dl.k8s.io/v1.33.3/kubernetes-client-linux-amd64.tar.gz
tar -xzvf kubernetes-client-linux-amd64.tar.gz

分发到所有使用 kubectl 工具的节点：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kubernetes/client/bin/kubectl root@${node_ip}:/opt/k8s/bin/
    ssh root@${node_ip} "chmod +x /opt/k8s/bin/*"
  done

创建 admin 证书和私钥

kubectl 使用 https 协议与 kube-apiserver 进行安全通信，kube-apiserver 对 kubectl 请求包含的证书进行认证和授权

kubectl 后续用于集群管理，所以这里创建具有最高权限的 admin 证书。创建证书签名请求命令如下：

bash

cd /opt/k8s/work
cat > admin-csr.json <<EOF
{
  "CN": "admin",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "system:masters",
      "OU": "onexstack"
    }
  ]
}
EOF

生成证书和私钥：

bash

cd /opt/k8s/work
cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes admin-csr.json | cfssljson -bare admin
ls admin*

忽略警告消息 [WARNING] This certificate lacks a "hosts" field.；

创建和分发 kubeconfig 文件

kubectl 使用 kubeconfig 文件访问 apiserver，该文件包含 kube-apiserver 的地址和认证信息（CA 证书和客户端证书）：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh

# 设置集群参数
kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/k8s/work/ca.pem \
  --embed-certs=true \
  --server=https://${NODE_IPS[0]}:6443 \
  --kubeconfig=kubectl.kubeconfig

# 设置客户端认证参数
kubectl config set-credentials admin \
  --client-certificate=/opt/k8s/work/admin.pem \
  --client-key=/opt/k8s/work/admin-key.pem \
  --embed-certs=true \
  --kubeconfig=kubectl.kubeconfig

# 设置上下文参数
kubectl config set-context kubernetes \
  --cluster=kubernetes \
  --user=admin \
  --kubeconfig=kubectl.kubeconfig

# 设置默认上下文
kubectl config use-context kubernetes --kubeconfig=kubectl.kubeconfig

分发到所有使用 kubectl 命令的节点：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ~/.kube"
    scp kubectl.kubeconfig root@${node_ip}:~/.kube/config
  done

Etcd 集群安装和配置

Etcd 是基于 Raft 的分布式 KV 存储系统，由 CoreOS 开发，常用于服务发现、共享配置以及并发控制（如 leader 选举、分布式锁等）。Kubernetes 使用 Etcd 集群持久化存储所有 API 对象、运行数据。

这里我会部署一个 2 节点高可用 Etcd 集群，具体步骤：

下载和分发 Etcd 二进制文件
创建 Etcd 证书和私钥
创建 Etcd 的 Systemd Unit 模板文件
为各节点创建和分发 Etcd Systemd Unit 文件
启动 Etcd 服务
检查 Etcd 启动结果
验证服务状态
查看当前的 Leader

下载和分发 Etcd 二进制文件

到 Etcd 的 release 页面下载最新版本的发布包：

bash

cd /opt/k8s/work
wget https://github.com/etcd-io/etcd/releases/download/v3.6.2/etcd-v3.6.2-linux-amd64.tar.gz
tar -xvf etcd-v3.6.2-linux-amd64.tar.gz

分发二进制文件到集群所有节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp etcd-v3.6.2-linux-amd64/etcd* root@${node_ip}:/opt/k8s/bin
    ssh root@${node_ip} "chmod +x /opt/k8s/bin/*"
  done

创建 Etcd 证书和私钥

创建 Etcd 集群各节点的 x509 证书，用于加密客户端与 Etcd 集群、Etcd 集群之间的通信

创建证书签名请求：

bash

cd /opt/k8s/work
cat > etcd-csr.json <<EOF
{
  "CN": "etcd",
  "hosts": [
    "127.0.0.1",
    "10.1.12.3",
    "10.1.8.16",
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "k8s",
      "OU": "onexstack"
    }
  ]
}
EOF

注意 hosts 字段指定了授权使用该证书的 Etcd 节点 IP 列表，所以我们需要将 Etcd 集群所有节点 IP 都列在其中

生成证书和私钥：

bash

cd /opt/k8s/work
cfssl gencert -ca=/opt/k8s/work/ca.pem \
    -ca-key=/opt/k8s/work/ca-key.pem \
    -config=/opt/k8s/work/ca-config.json \
    -profile=kubernetes etcd-csr.json | cfssljson -bare etcd
ls etcd*pem

将生成的证书和私钥分发到各 Etcd 节点：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p /etc/etcd/cert"
    scp etcd*.pem root@${node_ip}:/etc/etcd/cert/
  done

创建 Etcd 的 Systemd Unit 模板文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > etcd.service.template <<EOF
[Unit]
Description=Etcd Server
After=network.target
After=network-online.target
Wants=network-online.target
Documentation=https://github.com/coreos

[Service]
Type=notify
WorkingDirectory=${ETCD_DATA_DIR}
ExecStart=/opt/k8s/bin/etcd \\
  --data-dir=${ETCD_DATA_DIR} \\
  --wal-dir=${ETCD_WAL_DIR} \\
  --name=##NODE_NAME## \\
  --cert-file=/etc/etcd/cert/etcd.pem \\
  --key-file=/etc/etcd/cert/etcd-key.pem \\
  --trusted-ca-file=/etc/kubernetes/cert/ca.pem \\
  --peer-cert-file=/etc/etcd/cert/etcd.pem \\
  --peer-key-file=/etc/etcd/cert/etcd-key.pem \\
  --peer-trusted-ca-file=/etc/kubernetes/cert/ca.pem \\
  --peer-client-cert-auth \\
  --client-cert-auth \\
  --listen-peer-urls=https://##NODE_IP##:2380 \\
  --initial-advertise-peer-urls=https://##NODE_IP##:2380 \\
  --listen-client-urls=https://##NODE_IP##:2379,http://127.0.0.1:2379 \\
  --advertise-client-urls=https://##NODE_IP##:2379 \\
  --initial-cluster-token=etcd-cluster-0 \\
  --initial-cluster=${ETCD_NODES} \\
  --initial-cluster-state=new \\
  --auto-compaction-mode=periodic \\
  --auto-compaction-retention=1 \\
  --max-request-bytes=33554432 \\
  --quota-backend-bytes=6442450944 \\
  --heartbeat-interval=250 \\
  --election-timeout=2000
Restart=on-failure
RestartSec=5
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

WorkingDirectory、--data-dir：指定工作目录和数据目录为 ${ETCD_DATA_DIR}，需在启动服务前创建这个目录；
--wal-dir：指定 wal 目录，为了提高性能，一般使用 SSD 或者和 --data-dir 不同的磁盘；
--name：指定节点名称，当 --initial-cluster-state 值为 new 时，--name 的参数值必须位于 --initial-cluster 列表中；
--cert-file、--key-file：etcd server 与 client 通信时使用的证书和私钥；
--trusted-ca-file：签名 client 证书的 CA 证书，用于验证 client 证书；
--peer-cert-file、--peer-key-file：etcd 与 peer 通信使用的证书和私钥；
--peer-trusted-ca-file：签名 peer 证书的 CA 证书，用于验证 peer 证书；

为各节点创建和分发 Etcd Systemd Unit 文件

替换模板文件中的变量，为各节点创建 Ssystemd Unit 文件：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for (( i=0; i < 2; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${NODE_IPS[i]}/" etcd.service.template > etcd-${NODE_IPS[i]}.service
  done
ls *.service

NODE_NAMES 和 NODE_IPS 为相同长度的 bash 数组，分别为节点名称和对应的 IP
因为是将 Etcd 部署在 2 个节点上，所以上面的 for 循环中的次数为 2

分发生成的 Ssystemd Unit 文件：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp etcd-${node_ip}.service root@${node_ip}:/etc/systemd/system/etcd.service
  done

启动 Etcd 服务

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${ETCD_DATA_DIR} ${ETCD_WAL_DIR}"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable etcd && systemctl restart etcd " &
  done

必须先创建 Etcd 数据目录和工作目录
Etcd 进程首次启动时会等待其它节点的 Etcd 加入集群，命令 systemctl start etcd 会卡住一段时间，为正常现象

检查 Etcd 启动结果

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status etcd|grep Active"
  done

确保状态为 active (running)，否则查看日志，确认原因：

bash

journalctl -u etcd

验证服务状态

部署完 Etcd 集群后，在任一 Etcd 节点上执行如下命令：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    /opt/k8s/bin/etcdctl \
    --endpoints=https://${node_ip}:2379 \
    --cacert=/etc/kubernetes/cert/ca.pem \
    --cert=/etc/etcd/cert/etcd.pem \
    --key=/etc/etcd/cert/etcd-key.pem endpoint health
  done

v3.5.16 版本的 etcd/etcdctl 默认启用了 V3 API，所以执行 etcdctl 命令时不需要再指定环境变量 ETCDCTL_API=3
从 Kubernetes 1.13 开始，不再支持 v2 版本的 Etcd

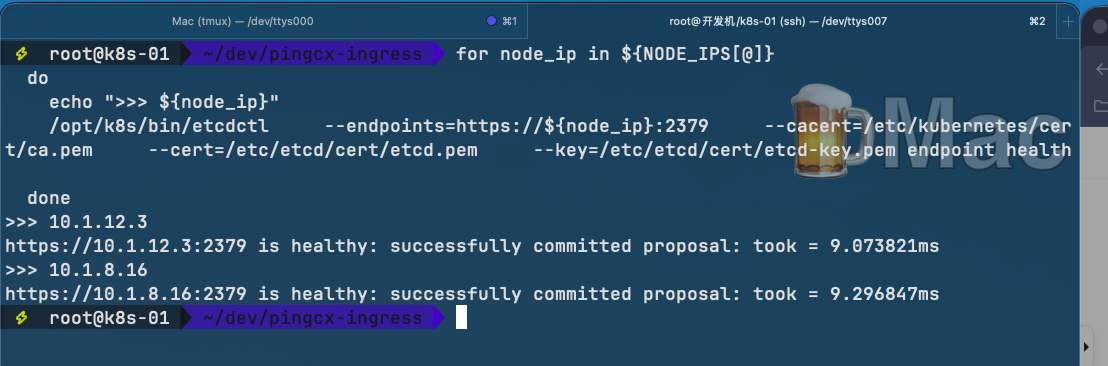

预期输出：

输出均为 healthy 时表示集群服务正常

查看当前的 Leader

使用 etcdctl 携带证书访问 etcd 集群

bash

source /opt/k8s/bin/environment.sh
/opt/k8s/bin/etcdctl \
  -w table --cacert=/etc/kubernetes/cert/ca.pem \
  --cert=/etc/etcd/cert/etcd.pem \
  --key=/etc/etcd/cert/etcd-key.pem \
  --endpoints=${ETCD_ENDPOINTS} endpoint status

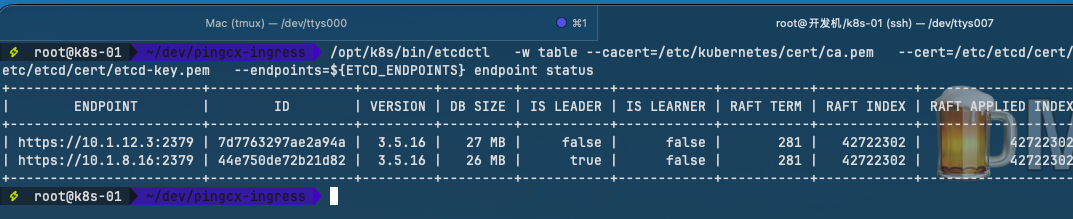

输出：

可见，当前的 Leader 为 10.1.8.16

部署 Master 节点组件

kubernetes master 节点运行如下组件：

kube-apiserver
kube-scheduler
kube-controller-manager

kube-apiserver、kube-scheduler 和 kube-controller-manager 均以多实例模式运行：

kube-scheduler 和 kube-controller-manager 会自动选举产生一个 leader 实例，其它实例处于阻塞模式，当 leader 挂了后，重新选举产生新的 leader，从而保证服务可用性
kube-apiserver 是无状态的，可以通过 kube-nginx 进行代理访问，从而保证服务可用性

部署 kube-apiserver 组件

这里我们准备部署一个 2 实例的 kube-apiserver 集群

下载最新版本二进制文件

bash

cd /opt/k8s/work
wget https://dl.k8s.io/v1.33.3/kubernetes-server-linux-amd64.tar.gz
tar -xzvf kubernetes-server-linux-amd64.tar.gz
cd kubernetes
tar -xzvf  kubernetes-src.tar.gz

将二进制文件拷贝到所有 master 节点：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kubernetes/server/bin/{apiextensions-apiserver,kube-apiserver,kube-controller-manager,kube-proxy,kube-scheduler,kubeadm,kubectl,kubelet,mounter} root@${node_ip}:/opt/k8s/bin/
    ssh root@${node_ip} "chmod +x /opt/k8s/bin/*"
  done

创建 kubernetes-master 证书和私钥

创建证书签名请求

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > kubernetes-csr.json <<EOF
{
  "CN": "kubernetes-master",
  "hosts": [
    "127.0.0.1",
    "10.37.91.93",
    "10.37.43.62",
    "${CLUSTER_KUBERNETES_SVC_IP}",
    "kubernetes",
    "kubernetes.default",
    "kubernetes.default.svc",
    "kubernetes.default.svc.cluster",
    "kubernetes.default.svc.cluster.local.",
    "kubernetes.default.svc.${CLUSTER_DNS_DOMAIN}."
  ],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "k8s",
      "OU": "onexstack"
    }
  ]
}
EOF

hosts 字段指定授权使用该证书的 IP 和域名列表，这里列出了 master 节点 IP、kubernetes 服务的 IP 和域名

生成证书和私钥

bash

cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes kubernetes-csr.json | cfssljson -bare kubernetes
ls kubernetes*pem

将生成的证书和私钥文件拷贝到所有 master 节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p /etc/kubernetes/cert"
    scp kubernetes*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

创建加密配置文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > encryption-config.yaml <<EOF
kind: EncryptionConfig
apiVersion: v1
resources:
  - resources:
      - secrets
    providers:
      - aescbc:
          keys:
            - name: key1
              secret: ${ENCRYPTION_KEY}
      - identity: {}
EOF

将加密配置文件拷贝到 master 节点的 /etc/kubernetes 目录下：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp encryption-config.yaml root@${node_ip}:/etc/kubernetes/
  done

创建审计策略文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > audit-policy.yaml <<EOF
apiVersion: audit.k8s.io/v1
kind: Policy
rules:
  # The following requests were manually identified as high-volume and low-risk, so drop them.
  - level: None
    resources:
      - group: ""
        resources:
          - endpoints
          - services
          - services/status
    users:
      - 'system:kube-proxy'
    verbs:
      - watch

  - level: None
    resources:
      - group: ""
        resources:
          - nodes
          - nodes/status
    userGroups:
      - 'system:nodes'
    verbs:
      - get

  - level: None
    namespaces:
      - kube-system
    resources:
      - group: ""
        resources:
          - endpoints
    users:
      - 'system:kube-controller-manager'
      - 'system:kube-scheduler'
      - 'system:serviceaccount:kube-system:endpoint-controller'
    verbs:
      - get
      - update

  - level: None
    resources:
      - group: ""
        resources:
          - namespaces
          - namespaces/status
          - namespaces/finalize
    users:
      - 'system:apiserver'
    verbs:
      - get

  # Don't log HPA fetching metrics.
  - level: None
    resources:
      - group: metrics.k8s.io
    users:
      - 'system:kube-controller-manager'
    verbs:
      - get
      - list

  # Don't log these read-only URLs.
  - level: None
    nonResourceURLs:
      - '/healthz*'
      - /version
      - '/swagger*'

  # Don't log events requests.
  - level: None
    resources:
      - group: ""
        resources:
          - events

  # node and pod status calls from nodes are high-volume and can be large, don't log responses
  # for expected updates from nodes
  - level: Request
    omitStages:
      - RequestReceived
    resources:
      - group: ""
        resources:
          - nodes/status
          - pods/status
    users:
      - kubelet
      - 'system:node-problem-detector'
      - 'system:serviceaccount:kube-system:node-problem-detector'
    verbs:
      - update
      - patch

  - level: Request
    omitStages:
      - RequestReceived
    resources:
      - group: ""
        resources:
          - nodes/status
          - pods/status
    userGroups:
      - 'system:nodes'
    verbs:
      - update
      - patch

  # deletecollection calls can be large, don't log responses for expected namespace deletions
  - level: Request
    omitStages:
      - RequestReceived
    users:
      - 'system:serviceaccount:kube-system:namespace-controller'
    verbs:
      - deletecollection

  # Secrets, ConfigMaps, and TokenReviews can contain sensitive & binary data,
  # so only log at the Metadata level.
  - level: Metadata
    omitStages:
      - RequestReceived
    resources:
      - group: ""
        resources:
          - secrets
          - configmaps
      - group: authentication.k8s.io
        resources:
          - tokenreviews
  # Get repsonses can be large; skip them.
  - level: Request
    omitStages:
      - RequestReceived
    resources:
      - group: ""
      - group: admissionregistration.k8s.io
      - group: apiextensions.k8s.io
      - group: apiregistration.k8s.io
      - group: apps
      - group: authentication.k8s.io
      - group: authorization.k8s.io
      - group: autoscaling
      - group: batch
      - group: certificates.k8s.io
      - group: extensions
      - group: metrics.k8s.io
      - group: networking.k8s.io
      - group: policy
      - group: rbac.authorization.k8s.io
      - group: scheduling.k8s.io
      - group: settings.k8s.io
      - group: storage.k8s.io
    verbs:
      - get
      - list
      - watch

  # Default level for known APIs
  - level: RequestResponse
    omitStages:
      - RequestReceived
    resources:
      - group: ""
      - group: admissionregistration.k8s.io
      - group: apiextensions.k8s.io
      - group: apiregistration.k8s.io
      - group: apps
      - group: authentication.k8s.io
      - group: authorization.k8s.io
      - group: autoscaling
      - group: batch
      - group: certificates.k8s.io
      - group: extensions
      - group: metrics.k8s.io
      - group: networking.k8s.io
      - group: policy
      - group: rbac.authorization.k8s.io
      - group: scheduling.k8s.io
      - group: settings.k8s.io
      - group: storage.k8s.io

  # Default level for all other requests.
  - level: Metadata
    omitStages:
      - RequestReceived
EOF

分发审计策略文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp audit-policy.yaml root@${node_ip}:/etc/kubernetes/audit-policy.yaml
  done

创建后续访问 metrics-server 或 kube-prometheus 使用的证书

创建证书签名请求

bash

cd /opt/k8s/work
cat > proxy-client-csr.json <<EOF
{
  "CN": "aggregator",
  "hosts": [],
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "BeiJing",
      "L": "BeiJing",
      "O": "k8s",
      "OU": "onexstack"
    }
  ]
}
EOF

CN 名称需要位于 kube-apiserver 的 --requestheader-allowed-names 参数中，否则后续访问 metrics 时会提示权限不足

生成证书和私钥

bash

cfssl gencert -ca=/etc/kubernetes/cert/ca.pem \
  -ca-key=/etc/kubernetes/cert/ca-key.pem  \
  -config=/etc/kubernetes/cert/ca-config.json  \
  -profile=kubernetes proxy-client-csr.json | cfssljson -bare proxy-client
ls proxy-client*.pem

将生成的证书和私钥文件拷贝到所有 master 节点

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp proxy-client*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

创建 /etc/kubernetes/pki/sa.key

bash

mkdir -p /etc/kubernetes/pki
chmod 700 /etc/kubernetes/pki
openssl genrsa -out sa.key 2048

for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p /etc/kubernetes/pki"
  done

for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp sa.key root@${node_ip}:/etc/kubernetes/pki/sa.key
  done

创建 kube-apiserver systemd unit 模板文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > kube-apiserver.service.template <<EOF
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/GoogleCloudPlatform/kubernetes
After=network.target

[Service]
WorkingDirectory=${K8S_DIR}/kube-apiserver
ExecStart=/opt/k8s/bin/kube-apiserver \\
  --advertise-address=##NODE_IP## \\
  --default-not-ready-toleration-seconds=360 \\
  --default-unreachable-toleration-seconds=360 \\
  --max-mutating-requests-inflight=2000 \\
  --max-requests-inflight=4000 \\
  --default-watch-cache-size=200 \\
  --delete-collection-workers=2 \\
  --encryption-provider-config=/etc/kubernetes/encryption-config.yaml \\
  --etcd-cafile=/etc/kubernetes/cert/ca.pem \\
  --etcd-certfile=/etc/kubernetes/cert/kubernetes.pem \\
  --etcd-keyfile=/etc/kubernetes/cert/kubernetes-key.pem \\
  --etcd-servers=${ETCD_ENDPOINTS} \\
  --bind-address=##NODE_IP## \\
  --secure-port=6443 \\
  --tls-cert-file=/etc/kubernetes/cert/kubernetes.pem \\
  --tls-private-key-file=/etc/kubernetes/cert/kubernetes-key.pem \\
  --audit-log-maxage=15 \\
  --audit-log-maxbackup=3 \\
  --audit-log-maxsize=100 \\
  --audit-log-truncate-enabled \\
  --audit-log-path=${K8S_DIR}/kube-apiserver/audit.log \\
  --audit-policy-file=/etc/kubernetes/audit-policy.yaml \\
  --profiling \\
  --anonymous-auth=false \\
  --client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --enable-bootstrap-token-auth \\
  --requestheader-allowed-names="aggregator" \\
  --requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-extra-headers-prefix="X-Remote-Extra-" \\
  --requestheader-group-headers=X-Remote-Group \\
  --requestheader-username-headers=X-Remote-User \\
  --service-account-key-file=/etc/kubernetes/cert/ca.pem \\
  --authorization-mode=Node,RBAC \\
  --runtime-config=api/all=true \\
  --enable-admission-plugins=NodeRestriction \\
  --allow-privileged=true \\
  --apiserver-count=3 \\
  --event-ttl=168h \\
  --kubelet-certificate-authority=/etc/kubernetes/cert/ca.pem \\
  --kubelet-client-certificate=/etc/kubernetes/cert/kubernetes.pem \\
  --kubelet-client-key=/etc/kubernetes/cert/kubernetes-key.pem \\
  --kubelet-timeout=10s \\
  --proxy-client-cert-file=/etc/kubernetes/cert/proxy-client.pem \\
  --proxy-client-key-file=/etc/kubernetes/cert/proxy-client-key.pem \\
  --service-cluster-ip-range=${SERVICE_CIDR} \\
  --service-node-port-range=${NODE_PORT_RANGE} \\
  --service-account-issuer=https://kubernetes.default.svc.cluster.local \\
  --service-account-signing-key-file=/etc/kubernetes/cert/ca-key.pem \\
  --api-audiences=https://kubernetes.default.svc.cluster.local \\
  --v=2
Restart=on-failure
RestartSec=10
Type=notify
LimitNOFILE=65536

[Install]
WantedBy=multi-user.target
EOF

TODO 参数说明

如果 kube-apiserver 机器没有运行 kube-proxy，则还需要添加 --enable-aggregator-routing=true 参数

为各节点创建和分发 kube-apiserver systemd unit 文件

替换模板文件中的变量，为各节点生成 systemd unit 文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for (( i=0; i < 2; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${NODE_IPS[i]}/" kube-apiserver.service.template > kube-apiserver-${NODE_IPS[i]}.service
  done
ls kube-apiserver*.service

NODE_NAMES 和 NODE_IPS 为相同长度的 bash 数组，分别为节点名称和对应的 IP

分发生成的 systemd unit 文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-apiserver-${node_ip}.service root@${node_ip}:/etc/systemd/system/kube-apiserver.service
  done

启动 kube-apiserver 服务

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${K8S_DIR}/kube-apiserver"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable kube-apiserver && systemctl restart kube-apiserver"
  done

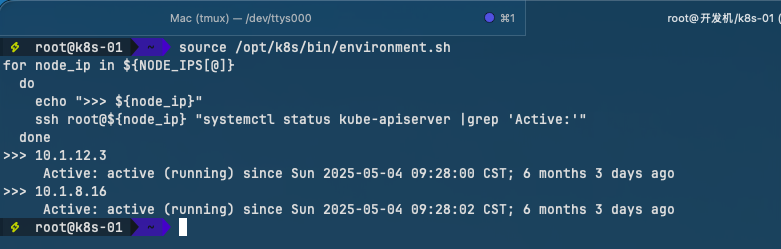

检查 kube-apiserver 运行状态

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status kube-apiserver |grep 'Active:'"
  done

输出：

确保状态为 active (running)，否则查看日志，确认原因：

bash

journalctl -u kube-apiserver

检查集群状态

因为 kube-scheduler、kube-controller-manager 还没有安装，所以这 2 个组件的状态是 Unhealthy，这是符合预期的状态

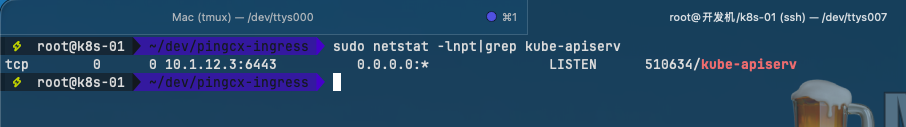

检查 kube-apiserver 监听的端口

6443：接收 HTTPS 请求的安全端口，对所有请求做认证和授权
由于关闭了非安全端口，故没有监听 8080

部署 kube-controller-manager 组件

这里我们准备部署高可用 kube-controller-manager 集群

该集群包含 2 个节点，启动后将通过竞争选举机制产生一个 leader 节点，其它节点为阻塞状态。当 leader 节点不可用时，阻塞的节点将再次进行选举产生新的 leader 节点，从而保证服务的可用性

为保证通信安全，本节课先生成 x509 证书和私钥，kube-controller-manager 在如下两种情况下使用该证书：

与 kube-apiserver 的安全端口通信
在安全端口(https，10252) 输出 prometheus 格式的 metrics

创建 kube-controller-manager 证书和私钥

创建证书签名请求

bash

cd /opt/k8s/work
cat > kube-controller-manager-csr.json <<EOF
{
    "CN": "system:kube-controller-manager",
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "hosts": [
      "127.0.0.1",
      "10.37.91.93",
      "10.37.43.62"
    ],
    "names": [
      {
        "C": "CN",
        "ST": "BeiJing",
        "L": "BeiJing",
        "O": "system:kube-controller-manager",
        "OU": "onexstack"
      }
    ]
}
EOF

hosts 列表包含所有 kube-controller-manager 节点 IP；
CN 和 O 均为 system:kube-controller-manager，kubernetes 内置的 ClusterRoleBindings system:kube-controller-manager 赋予 kube-controller-manager 工作所需的权限。

生成证书和私钥

bash

cd /opt/k8s/work
cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes kube-controller-manager-csr.json | cfssljson -bare kube-controller-manager
ls kube-controller-manager*pem

将生成的证书和私钥分发到所有 master 节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-controller-manager*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

创建和分发 kubeconfig 文件

kube-controller-manager 使用 kubeconfig 文件访问 apiserver，该文件提供了 apiserver 地址、嵌入的 CA 证书和 kube-controller-manager 证书等信息：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/k8s/work/ca.pem \
  --embed-certs=true \
  --server="https://##NODE_IP##:6443" \
  --kubeconfig=kube-controller-manager.kubeconfig

kubectl config set-credentials system:kube-controller-manager \
  --client-certificate=kube-controller-manager.pem \
  --client-key=kube-controller-manager-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-controller-manager.kubeconfig

kubectl config set-context system:kube-controller-manager \
  --cluster=kubernetes \
  --user=system:kube-controller-manager \
  --kubeconfig=kube-controller-manager.kubeconfig

kubectl config use-context system:kube-controller-manager --kubeconfig=kube-controller-manager.kubeconfig

kube-controller-manager 与 kube-apiserver 混布，故直接通过节点 IP 访问 kube-apiserver

分发 kubeconfig 到所有 master 节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    sed -e "s/##NODE_IP##/${node_ip}/" kube-controller-manager.kubeconfig > kube-controller-manager-${node_ip}.kubeconfig
    scp kube-controller-manager-${node_ip}.kubeconfig root@${node_ip}:/etc/kubernetes/kube-controller-manager.kubeconfig
  done

创建 kube-controller-manager systemd unit 模板文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > kube-controller-manager.service.template <<EOF
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
WorkingDirectory=${K8S_DIR}/kube-controller-manager
ExecStart=/opt/k8s/bin/kube-controller-manager \\
  --profiling \\
  --cluster-name=kubernetes \\
  --controllers=*,bootstrapsigner,tokencleaner \\
  --kube-api-qps=1000 \\
  --kube-api-burst=2000 \\
  --leader-elect \\
  --use-service-account-credentials\\
  --concurrent-service-syncs=2 \\
  --bind-address=##NODE_IP## \\
  --secure-port=10252 \\
  --tls-cert-file=/etc/kubernetes/cert/kube-controller-manager.pem \\
  --tls-private-key-file=/etc/kubernetes/cert/kube-controller-manager-key.pem \\
  --authentication-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
  --client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-allowed-names="aggregator" \\
  --requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-extra-headers-prefix="X-Remote-Extra-" \\
  --requestheader-group-headers=X-Remote-Group \\
  --requestheader-username-headers=X-Remote-User \\
  --authorization-kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
  --cluster-signing-cert-file=/etc/kubernetes/cert/ca.pem \\
  --cluster-signing-key-file=/etc/kubernetes/cert/ca-key.pem \\
  --horizontal-pod-autoscaler-sync-period=10s \\
  --concurrent-deployment-syncs=10 \\
  --concurrent-gc-syncs=30 \\
  --node-cidr-mask-size=24 \\
  --service-cluster-ip-range=${SERVICE_CIDR} \\
  --terminated-pod-gc-threshold=10000 \\
  --root-ca-file=/etc/kubernetes/cert/ca.pem \\
  --service-account-private-key-file=/etc/kubernetes/cert/ca-key.pem \\
  --kubeconfig=/etc/kubernetes/kube-controller-manager.kubeconfig \\
  --v=2
Restart=on-failure
RestartSec=5

[Install]
WantedBy=multi-user.target
EOF

为各节点创建和分发 kube-controller-mananger systemd unit 文件

替换模板文件中的变量，为各节点创建 systemd unit 文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for (( i=0; i < 2; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${NODE_IPS[i]}/" kube-controller-manager.service.template > kube-controller-manager-${NODE_IPS[i]}.service
  done
ls kube-controller-manager*.service

分发到所有 master 节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-controller-manager-${node_ip}.service root@${node_ip}:/etc/systemd/system/kube-controller-manager.service
  done

启动 kube-controller-manager 服务

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${K8S_DIR}/kube-controller-manager"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable kube-controller-manager && systemctl restart kube-controller-manager"
  done

检查服务运行状态

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status kube-controller-manager|grep Active"
  done

确保状态为 active (running)，否则查看日志，确认原因：

bash

journalctl -u kube-controller-manager

kube-controller-manager 监听 10252 端口，接收 https 请求：

bash

$ sudo netstat -lnpt | grep kube-cont
tcp        0      0 10.37.91.93:10252       0.0.0.0:*               LISTEN      421990/kube-control

查看输出的 metrics。以下命令在 kube-controller-manager 节点上执行

bash

$ curl -s --cacert /opt/k8s/work/ca.pem --cert /opt/k8s/work/admin.pem --key /opt/k8s/work/admin-key.pem https://10.37.43.62:10252/metrics |head
# HELP aggregator_discovery_aggregation_count_total [ALPHA] Counter of number of times discovery was aggregated
# TYPE aggregator_discovery_aggregation_count_total counter
aggregator_discovery_aggregation_count_total 0
# HELP apiextensions_apiserver_validation_ratcheting_seconds [ALPHA] Time for comparison of old to new for the purposes of CRDValidationRatcheting during an UPDATE in seconds.
# TYPE apiextensions_apiserver_validation_ratcheting_seconds histogram
apiextensions_apiserver_validation_ratcheting_seconds_bucket{le="1e-05"} 0
apiextensions_apiserver_validation_ratcheting_seconds_bucket{le="4e-05"} 0
apiextensions_apiserver_validation_ratcheting_seconds_bucket{le="0.00016"} 0
apiextensions_apiserver_validation_ratcheting_seconds_bucket{le="0.00064"} 0
apiextensions_apiserver_validation_ratcheting_seconds_bucket{le="0.00256"} 0

查看当前的 leader

bash

$ kubectl -n kube-system get leases kube-controller-manager
NAME                      HOLDER                                        AGE
kube-controller-manager   k8s-01_5d243d35-b0c0-49cd-8bca-43c77a94ad5a   21m

可见，当前的 Leader 为 k8s-01 节点上运行的 kube-controller-manager 实例

测试 kube-controller-manager 集群的高可用

停掉其中一个节点的 kube-controller-manager 服务，观察其它节点的日志，看是否获取了 leader 权限。

执行以下命令，停掉 k8s-01 节点上的 kube-controller-manager 服务，并再从查看当前的 Leader：

bash

$ sudo systemctl stop kube-controller-manager.service
$ kubectl -n kube-system get leases kube-controller-manager
NAME                      HOLDER                                        AGE
kube-controller-manager   k8s-02_45a2acb9-b710-47b6-a138-3ac57f61861b   23m

可见，kube-controller-manager 的 Leader 切换到了 k8s-02 节点上的 kube-controller-manager 实例

部署 kube-scheduler 组件

高可用 kube-scheduler 集群包含 2 个节点，启动后将通过竞争选举机制产生一个 leader 节点，其它节点为阻塞状态。当 leader 节点不可用后，剩余节点将再次进行选举产生新的 leader 节点，从而保证服务的可用性

为保证通信安全，本文档先生成 x509 证书和私钥，kube-scheduler 在如下两种情况下使用该证书：

与 kube-apiserver 的安全端口通信;
在安全端口(https，10251) 输出 prometheus 格式的 metrics；

创建 kube-scheduler 证书和私钥

创建证书签名请求

bash

cd /opt/k8s/work
cat > kube-scheduler-csr.json <<EOF
{
    "CN": "system:kube-scheduler",
    "hosts": [
      "127.0.0.1",
      "10.37.91.93",
      "10.37.43.62"
    ],
    "key": {
        "algo": "rsa",
        "size": 2048
    },
    "names": [
      {
        "C": "CN",
        "ST": "BeiJing",
        "L": "BeiJing",
        "O": "system:kube-scheduler",
        "OU": "onexstack"
      }
    ]
}
EOF

hosts 列表包含所有 kube-scheduler 节点 IP；
CN 和 O 均为 system:kube-scheduler，kubernetes 内置的 ClusterRoleBindings system:kube-scheduler 将赋予 kube-scheduler 工作所需的权限；

生成证书和私钥

bash

cd /opt/k8s/work
cfssl gencert -ca=/opt/k8s/work/ca.pem \
  -ca-key=/opt/k8s/work/ca-key.pem \
  -config=/opt/k8s/work/ca-config.json \
  -profile=kubernetes kube-scheduler-csr.json | cfssljson -bare kube-scheduler
ls kube-scheduler*pem

将生成的证书和私钥分发到所有 master 节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler*.pem root@${node_ip}:/etc/kubernetes/cert/
  done

创建和分发 kubeconfig 文件

kube-scheduler 使用 kubeconfig 文件访问 apiserver，该文件提供了 apiserver 地址、嵌入的 CA 证书和 kube-scheduler 证书：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
kubectl config set-cluster kubernetes \
  --certificate-authority=/opt/k8s/work/ca.pem \
  --embed-certs=true \
  --server="https://##NODE_IP##:6443" \
  --kubeconfig=kube-scheduler.kubeconfig

kubectl config set-credentials system:kube-scheduler \
  --client-certificate=kube-scheduler.pem \
  --client-key=kube-scheduler-key.pem \
  --embed-certs=true \
  --kubeconfig=kube-scheduler.kubeconfig

kubectl config set-context system:kube-scheduler \
  --cluster=kubernetes \
  --user=system:kube-scheduler \
  --kubeconfig=kube-scheduler.kubeconfig

kubectl config use-context system:kube-scheduler --kubeconfig=kube-scheduler.kubeconfig

分发 kubeconfig 到所有 master 节点：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    sed -e "s/##NODE_IP##/${node_ip}/" kube-scheduler.kubeconfig > kube-scheduler-${node_ip}.kubeconfig
    scp kube-scheduler-${node_ip}.kubeconfig root@${node_ip}:/etc/kubernetes/kube-scheduler.kubeconfig
  done

创建 kube-scheduler 配置文件

bash

cd /opt/k8s/work
cat >kube-scheduler.yaml.template <<EOF
apiVersion: kubescheduler.config.k8s.io/v1
kind: KubeSchedulerConfiguration
clientConnection:
  burst: 200
  kubeconfig: "/etc/kubernetes/kube-scheduler.kubeconfig"
  qps: 100
enableContentionProfiling: false
enableProfiling: true
leaderElection:
  leaderElect: true
EOF

--kubeconfig：指定 kubeconfig 文件路径，kube-scheduler 使用它连接和验证 kube-apiserver
--leader-elect=true：集群运行模式，启用选举功能；被选为 leader 的节点负责处理工作，其它节点为阻塞状态

替换模板文件中的变量：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for (( i=0; i < 2; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${NODE_IPS[i]}/" kube-scheduler.yaml.template > kube-scheduler-${NODE_IPS[i]}.yaml
  done
ls kube-scheduler*.yaml

NODE_NAMES 和 NODE_IPS 为相同长度的 bash 数组，分别为节点名称和对应的 IP；

分发 kube-scheduler 配置文件到所有 master 节点：

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler-${node_ip}.yaml root@${node_ip}:/etc/kubernetes/kube-scheduler.yaml
  done

创建 kube-scheduler systemd unit 模板文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
cat > kube-scheduler.service.template <<EOF
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/GoogleCloudPlatform/kubernetes

[Service]
WorkingDirectory=${K8S_DIR}/kube-scheduler
ExecStart=/opt/k8s/bin/kube-scheduler \\
  --config=/etc/kubernetes/kube-scheduler.yaml \\
  --bind-address=##NODE_IP## \\
  --secure-port=10259 \\
  --tls-cert-file=/etc/kubernetes/cert/kube-scheduler.pem \\
  --tls-private-key-file=/etc/kubernetes/cert/kube-scheduler-key.pem \\
  --authentication-kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \\
  --client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-allowed-names="aggregator" \\
  --requestheader-client-ca-file=/etc/kubernetes/cert/ca.pem \\
  --requestheader-extra-headers-prefix="X-Remote-Extra-" \\
  --requestheader-group-headers=X-Remote-Group \\
  --requestheader-username-headers=X-Remote-User \\
  --authorization-kubeconfig=/etc/kubernetes/kube-scheduler.kubeconfig \\
  --v=2
Restart=always
RestartSec=5
StartLimitInterval=0

[Install]
WantedBy=multi-user.target
EOF

为各节点创建和分发 kube-scheduler systemd unit 文件

替换模板文件中的变量，为各节点创建 systemd unit 文件

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for (( i=0; i < 2; i++ ))
  do
    sed -e "s/##NODE_NAME##/${NODE_NAMES[i]}/" -e "s/##NODE_IP##/${NODE_IPS[i]}/" kube-scheduler.service.template > kube-scheduler-${NODE_IPS[i]}.service
  done
ls kube-scheduler*.service

分发 systemd unit 文件到所有 master 节点

bash

cd /opt/k8s/work
source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    scp kube-scheduler-${node_ip}.service root@${node_ip}:/etc/systemd/system/kube-scheduler.service
  done

启动 kube-scheduler 服务

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "mkdir -p ${K8S_DIR}/kube-scheduler"
    ssh root@${node_ip} "systemctl daemon-reload && systemctl enable kube-scheduler && systemctl restart kube-scheduler"
  done

检查服务运行状态

bash

source /opt/k8s/bin/environment.sh
for node_ip in ${NODE_IPS[@]}
  do
    echo ">>> ${node_ip}"
    ssh root@${node_ip} "systemctl status kube-scheduler|grep Active"
  done

确保状态为 active (running)，否则查看日志，确认原因：

bash

journalctl -u kube-scheduler

查看输出的 metrics

kube-scheduler 监听 10259 端口，接收 https 请求，该接口对外提供 /metrics 和 /healthz。检查命令如下：

bash

$ sudo netstat -lnpt |grep kube-sch
tcp        0      0 10.37.91.93:10259       0.0.0.0:*               LISTEN      433307/kube-schedul

访问 /metrics 接口：

bash

curl -s --cacert /opt/k8s/work/ca.pem --cert /opt/k8s/work/admin.pem --key /opt/k8s/work/admin-key.pem https://10.37.91.93:10259/metrics |head
# HELP aggregator_discovery_aggregation_count_total [ALPHA] Counter of number of times discovery was aggregated
# TYPE aggregator_discovery_aggregation_count_total counter
aggregator_discovery_aggregation_count_total 0
# HELP apiserver_audit_event_total [ALPHA] Counter of audit events generated and sent to the audit backend.
# TYPE apiserver_audit_event_total counter
apiserver_audit_event_total 0
# HELP apiserver_audit_requests_rejected_total [ALPHA] Counter of apiserver requests rejected due to an error in audit logging backend.
# TYPE apiserver_audit_requests_rejected_total counter
apiserver_audit_requests_rejected_total 0
# HELP apiserver_client_certificate_expiration_seconds [ALPHA] Distribution of the remaining lifetime on the certificate used to authenticate a request.

查看当前的 leader

可见，当前的 Leader 为 k8s-02 节点上运行的 kube-scheduler 实例

测试 kube-scheduler 集群的高可用

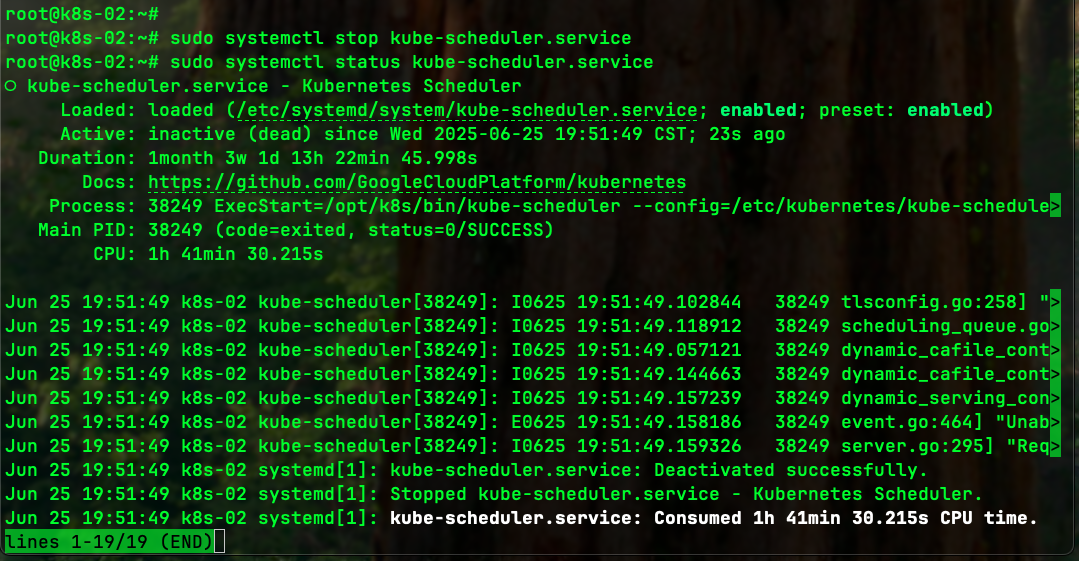

停掉 k8s-02 节点的 kube-scheduler 服务

然后观察其它节点的日志，看是否获取了 leader 权限

可见，kube-scheduler 的 Leader 切换到了 k8s-01 节点上的 kube-scheduler 实例

在轻量云上二进制部署 Kubernetes（下篇）

轻量云上二进制部署 Kubernetes（上篇）

轻量云上二进制部署 Kubernetes（上篇）

准备工作 ​

创建 CA 根证书和秘钥 ​

kubectl 安装和配置 ​

下载和分发 kubectl 二进制文件 ​

创建 admin 证书和私钥 ​

创建和分发 kubeconfig 文件 ​

Etcd 集群安装和配置 ​

下载和分发 Etcd 二进制文件 ​

创建 Etcd 证书和私钥 ​

创建 Etcd 的 Systemd Unit 模板文件 ​

为各节点创建和分发 Etcd Systemd Unit 文件 ​

启动 Etcd 服务 ​

检查 Etcd 启动结果 ​

验证服务状态 ​

查看当前的 Leader ​

部署 Master 节点组件 ​

部署 kube-apiserver 组件 ​

部署 kube-controller-manager 组件 ​

部署 kube-scheduler 组件 ​

准备工作

创建 CA 根证书和秘钥

kubectl 安装和配置

下载和分发 kubectl 二进制文件

创建 admin 证书和私钥

创建和分发 kubeconfig 文件

Etcd 集群安装和配置

下载和分发 Etcd 二进制文件

创建 Etcd 证书和私钥

创建 Etcd 的 Systemd Unit 模板文件

为各节点创建和分发 Etcd Systemd Unit 文件

启动 Etcd 服务

检查 Etcd 启动结果

验证服务状态

查看当前的 Leader

部署 Master 节点组件

部署 kube-apiserver 组件

部署 kube-controller-manager 组件

部署 kube-scheduler 组件
